Sphericalplate 5D – 96well format – 2400 spheroids

Cat.#  KDK096

25 spheroids per well

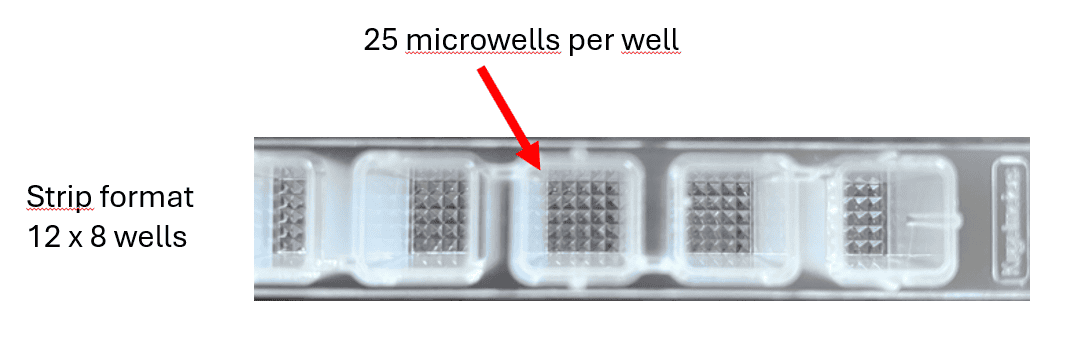

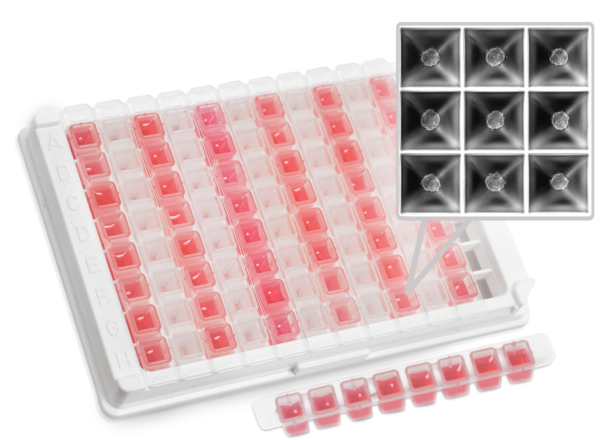

The Sphericalplate 5D® strip plate is a sterile, single-use, standard cell culture device to enable the aggregation of single cells into uniformly sized cell spheroids. A single removable strip has 8 wells, each with 25 round-bottomed microwells. Each strip contains in total 200 microwells. The product configuration is 12 strips on a 96-well frame (full plate). The Sphericalplate 5D® is intended for Research Use Only.

Spheroid microwell SP5D plate

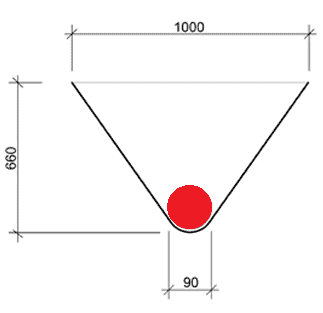

Microwell dimensions

Microwells in the SP5D 96-format plate are larger than in other SP5D plates. Spheroids can grown at a diameter up to 500µm.

  • uniformity – standardization of spheroid formation
  • no surface attachment due to pre-applied coating
  • strip format gives flexibility
  • more data points with less work
  • compatible with standard imaging and automatization equipment
  • centralized position of spheroid within microwell
  • Long and short term culture possible
  • collection of secretome from the spheroids possible

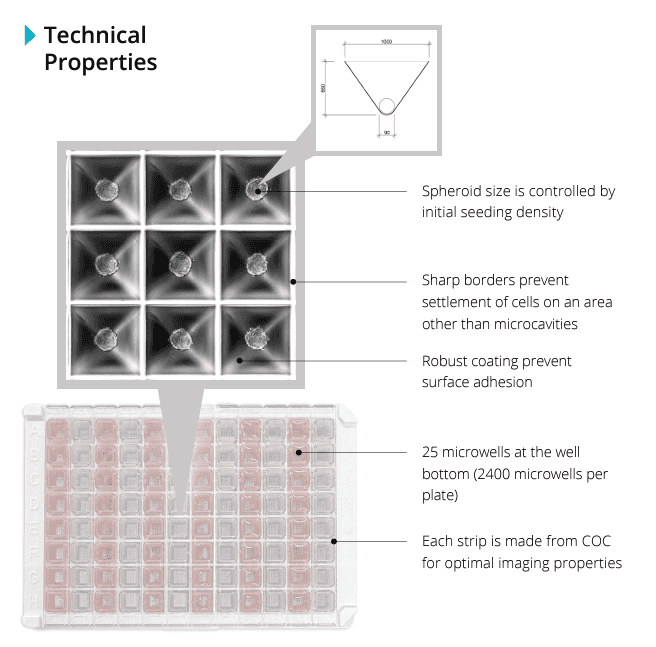

Specifications Cat.#  KDK096

Strip material: Transparent Cyclic Olefin Copolymer (COC)

Format : Strip for 96 well frame (COC)

Outer dimensions of frame:  127.8 x 85.6 x 14.3 mm (standard SBS footprint)

Number of microwells per well:  25

Number of microwells per strip: 200

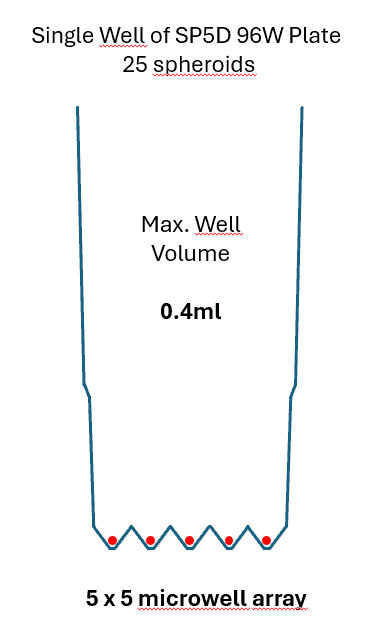

Maximum volume per well: 0.4 ml

Working volume per well: 0.1 – 0.2 ml

Surface modification: Non Fouling / Low adhesion coating

Lid and Frame material: Polystyrene (PS)

Sterility: X-Ray irradiated

Technical questions : [email protected]

Manufacturer : Kugelmeiers Ltd. (Switzerland), distributed in EU by KDBIO S.A.S.
