Sphericalplate 5D – 6well format – 20184 spheroids

Cat.#  KDK006

3364 spheroids per well

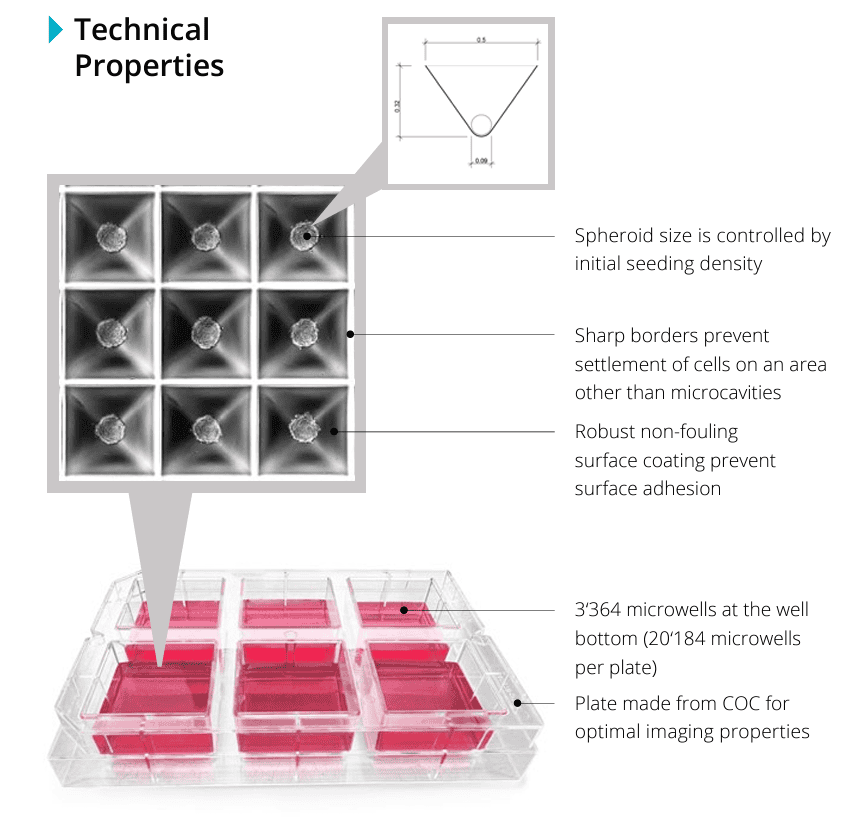

The Sphericalplate 5D® is a sterile, single-use, standard cell culture plate with the intended purpose of enabling the aggregation of single cells into uniformly sized cell spheroids. The Sphericalplate 5D® has 6 functional wells in rows A and B. Each of these wells consists of 3‘364 round-bottomed microwells and the whole plate contains in total 20’184 microwells. The Sphericalplate 5D® is intended for Research Use Only.

  • uniformity – standardization of spheroid formation
  • no surface attachment due to pre-applied coating
  • thousands of spheroids with minimal effort
  • compatible with standard imaging and automatization equipment
  • centralized position of spheroid within microwell
  • Long and short term culture possible
  • collection of secretome from the spheroids possible

Specifications Cat.#  KDK096

Strip material: Transparent Cyclic Olefin Copolymer (COC)

Format : 6 well plate

Outer dimensions of frame: 127.76 x 85.47 x 20.15 mm (standard SBS footprint)

Number of microwells per well:  3364

Maximum volume per well: 14 ml

Working volume per well: 2 – 4 ml

Surface modification: Non Fouling / Low adhesion coating in wells A1-A6 and C1-C6

Lid and Frame material: Polystyrene (PS)

Sterility: X-Ray irradiated

Technical questions : [email protected]

Manufacturer : Kugelmeiers Ltd. (Switzerland), distributed in EU by KDBIO S.A.S.
