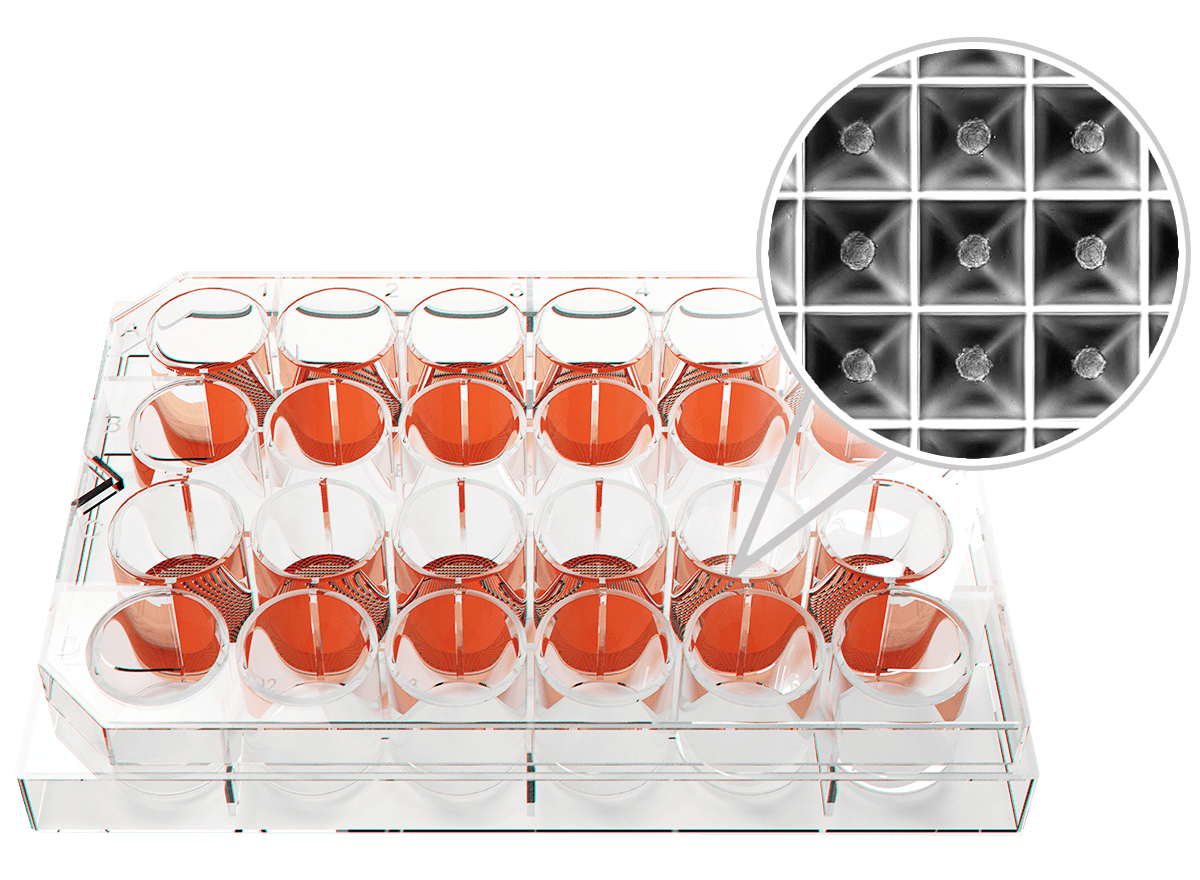

Sphericalplate 5D® – 24well format – 9000 spheroids
Cat.# KDK024
750 uniform spheroids per well

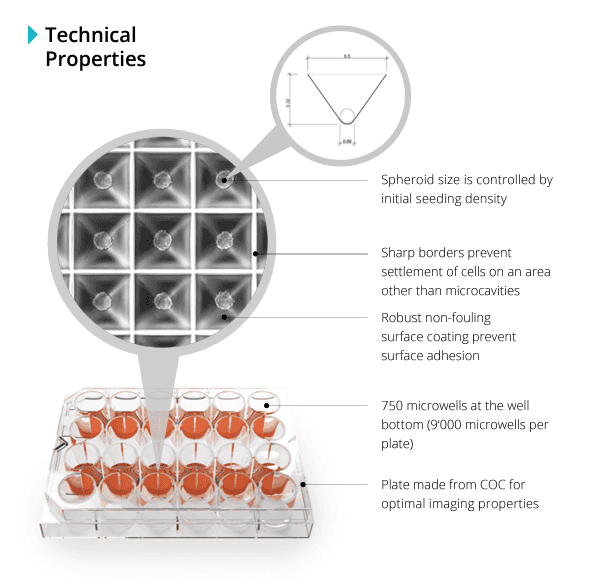

The Sphericalplate 5D® has 12 functional wells in rows A1-A6 and C1-C6. Each of these wells consists of approximately 750 x round-bottom microwells (Non-adherent) and the whole plate contains in total 9’000 microwells. The Sphericalplate 5D® is a sterile, single-use, cell culture plate that enables the aggregation of single cells into uniformly sized cell spheroids of maximum diameter 150µm (for spheroids up to 300-350 µm use KDK096). The Sphericalplate 5D® is intended for Research Use Only.
- uniformity – standardization of spheroid formation
- no surface attachment due to pre-applied coating
- many more data points with much less work
- compatible with standard imaging and automatization equipment
- centralized position of spheroid within microwell
- Long and short term culture possible
- collection of secretome from the spheroids possible
Specifications Cat.# KDK024
Strip material: Transparent Cyclic Olefin Copolymer (COC)
Format : 24 well plate
Outer dimensions of frame: 127.76 x 85.47 x 20.15 mm (standard SBS footprint)
Number of microwells per well: 750
Maximum volume per well: 3 ml
Working volume per well: 0.5 – 2 ml
Surface modification: Non Fouling / Low adhesion coating in wells A1-A6 and C1-C6
Lid and Frame material: Polystyrene (PS)
Sterility: X-Ray irradiated
Technical questions : [email protected]
Manufacturer : Kugelmeiers Ltd. (Switzerland), distributed in EU by KDBIO S.A.S.
